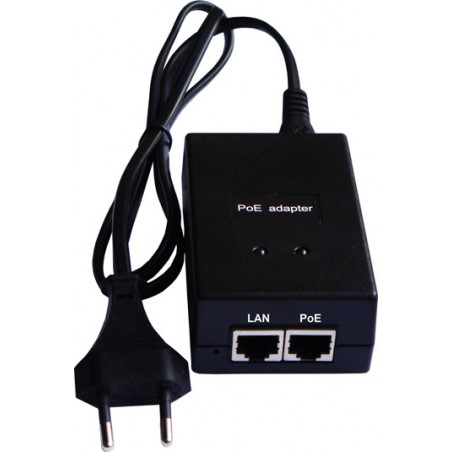

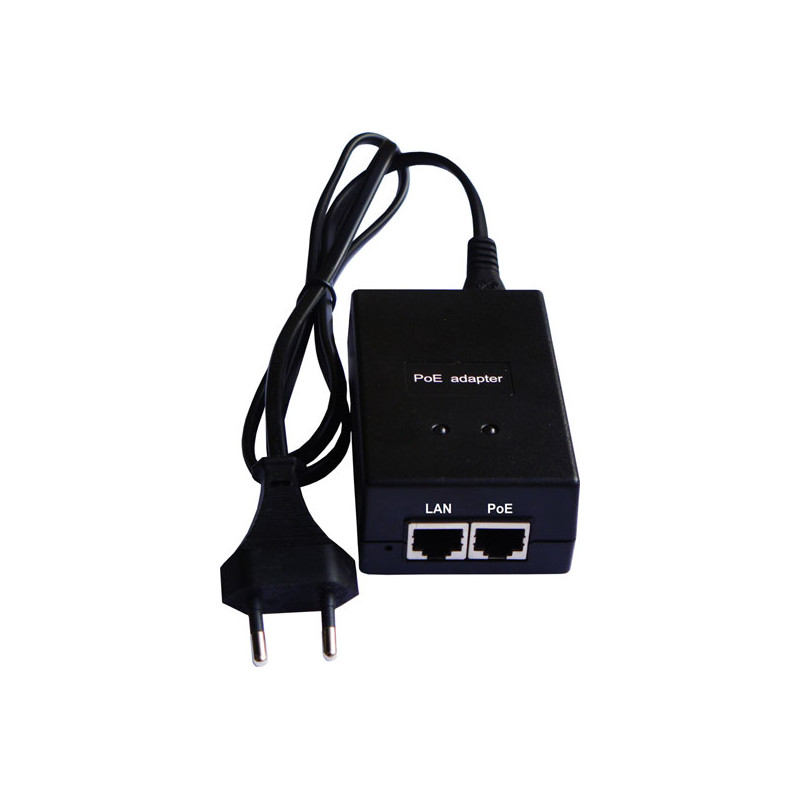

PoE įterpėjas-injector 1 kanalo POE-004, 48V, 0,4A
18,67 €
Nėra mokesčio
Features:
• Complies with IEEE 802.3/802.3u 10/100Base-T.
• Provides 48Vdc via pairs 4,5(+)& 7,8(-) of RJ-45 cable and for power supply safety.
• Distance up to 100 meters.
• Provides up to 15.4W of Power over Ethernet.
Technical Specifications:
• AC VOLTAGE: 90Vac TO 264Vac INPUT.
• FREQUENCY: 47Hz TO 63Hz.
• AC CURRENT: 0.6A MAX.
• INRUSH CURRENT: 40A MAX. AT 115Vac AND FULL LOAD, COLD START, 25°C.
• OUTPUT VOLTAGE: 48VDC.
• OUTPUT TOLERANCE: 45.6V~50.4V.
• RIPPLE & NOISE: 480mVp-p.
• LOAD: MIN 0A MAX0.4A.
• RISE TIME: 50mS MAX.
• HOLD-UP TIME: MINIMUM 10mS AT 80% MAX LOAD, 115Vac INPUT.
• Efficiency: THE SWITCHER SHOULD PROVIDE DC CONVERSION EFFICIENCY MINIMUM 80%.
• OVERSHOOT: OVERSHOOT SHOULD NOT EXCEED 10% OVER NOMINAL VOLTAGE.
• Operating Temperature: 0°C~40°C.
• Operating Humidity: 20%~90% (Non-Condensing).
• Complies with IEEE 802.3/802.3u 10/100Base-T.
• Provides 48Vdc via pairs 4,5(+)& 7,8(-) of RJ-45 cable and for power supply safety.
• Distance up to 100 meters.
• Provides up to 15.4W of Power over Ethernet.
Technical Specifications:
• AC VOLTAGE: 90Vac TO 264Vac INPUT.
• FREQUENCY: 47Hz TO 63Hz.
• AC CURRENT: 0.6A MAX.
• INRUSH CURRENT: 40A MAX. AT 115Vac AND FULL LOAD, COLD START, 25°C.
• OUTPUT VOLTAGE: 48VDC.
• OUTPUT TOLERANCE: 45.6V~50.4V.
• RIPPLE & NOISE: 480mVp-p.
• LOAD: MIN 0A MAX0.4A.
• RISE TIME: 50mS MAX.
• HOLD-UP TIME: MINIMUM 10mS AT 80% MAX LOAD, 115Vac INPUT.
• Efficiency: THE SWITCHER SHOULD PROVIDE DC CONVERSION EFFICIENCY MINIMUM 80%.
• OVERSHOOT: OVERSHOOT SHOULD NOT EXCEED 10% OVER NOMINAL VOLTAGE.
• Operating Temperature: 0°C~40°C.
• Operating Humidity: 20%~90% (Non-Condensing).
