PoE šakotuvas 1000Mbps 16portu+2G uplink + 2SFP

PoE šakotuvas 16-Portų, +uplink 2-Port RJ45 + 2-Port SFP, 135W

Product Overview

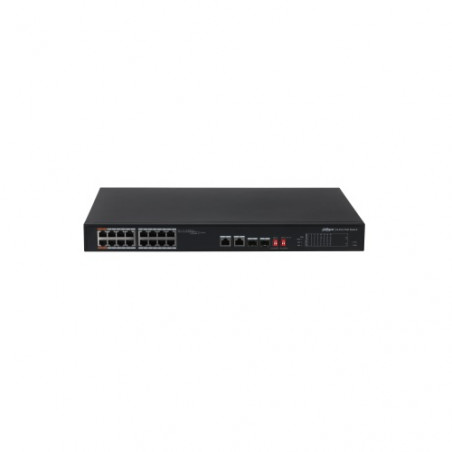

DH-PFS3218-16ET-135 is a 100 Mbps dual-port uplink unmanaged PoE switch. It supports functional DIP switch which provides port isolation, long distance power supply, PoE watchdog and QoS control. Featured with Gigabit uplink optical ports, it meets the need of long distance transmission. Applicable to small and micro-scale monitoring networks such as office desktops, schools, hotels, supermarkets, hospitals.

Features:


• Supports long distance PoE transmission.
• Intelligent PoE.
• Two-layer industrial PoE switch.
• Innovative PoE Watchdog PD Alive.
• Smooth Transmission.
• MAC auto study and aging, MAC address list capacity is 8K.
• Conform IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z standards.
• Supports PoE IEEE802.3af, IEEE802.3at, Hi-PoE standard.
• Port isolation.
• Industrial wide temperature design.

Technical Specifications:

• Model PFS3218-16ET-135.
Ethernet Ports:
• 16*10/100Mbps RJ45 (PoE).
• 2*10/100/1000Mbps RJ45 (uplink).
• 2*1000Mbps SFP (uplink) (combo).
• PoE Power Consumption Port 1-2=60W, Port 3-16=30W, Total=135W.
• PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE.
• PoE/Hi-PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).
• Switching Capacity 7.2Gbps.
• Packet Forwarding 5.3568 Mpps.
• Packet Buffer Memory 4Mbit.
• MAC Table Size 8K.
• Application Humidity 10%~90%RH.
• Power AC 100-240V.
• Thunder Protection Common Mode 4KV.
• Differential Mode 2KV.
• ESD Protection Air discharge: 8 kV.
• Contact discharge: 6 kV.
• Working Temperature: -10°C~55°C.
• Dimension(W×D×H) 440mm×300mm×44mm.
