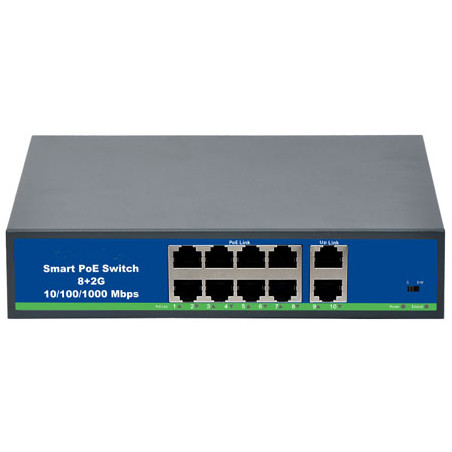

PoE šakotuvas 100Mbps 8portų+2G uplink, 250m Distancija, 802.3AF/AT, 120W(52V 2.3A)

Features:

• 8*10/100mbps POE port;2*100/1000mbps UP Link port
• 250m Distance; Vlan Support
• REALTEK Chipset
• Support IEEE802.3AF/AT
• Whole Power:120W(52V 2.3A)
• All port supported by MDI/MDIX auto flip and self negotiation
• Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
• Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
• Each port max. power supply reached 30W.

Technical Specifications:

• POE Port 1 to 8 support IEEE802.3AF/AT Standard
• Output Power15.4W/30W IEEE802.3af/at
• Power PinBoth 1/2+?3/6- and 4/5+7/8-
• Whole Power?120W (52V 2.3A)
• POE ProtocolIEEE 802.3af/IEEE 802.3at
• POE Type End-span
• Power Distance ?250m
• Network Standard IEEE 802.3? IEEE802.3u?802.3x?802.3af/at
• Network Medium 10/100BASE-TX:5 class and above non shielded twisted pair
• Data Distance ?250m
• Switch Capability 10Gbps
• Forwarding Mode Store and forward
• Forwarding Rate 100Mbps:14880pps 1000Mbps:14800pps
• MAC Address MAC address table 2K
• Port Function Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
• LED Indicator LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
• Working Environment Working temperature:-10°-- 55°C
• Weight 1.2kg
• Size 270mm*180mm*44mm(L*W*H)
